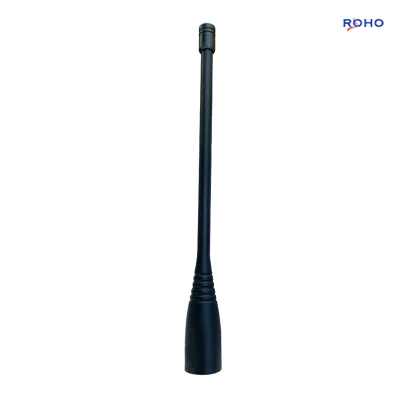

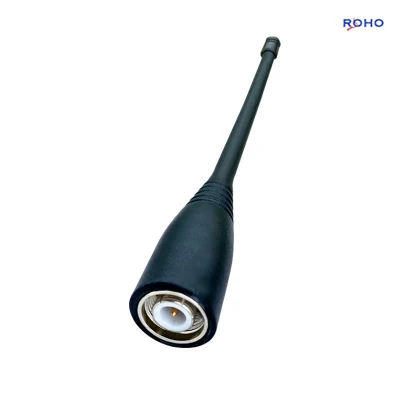

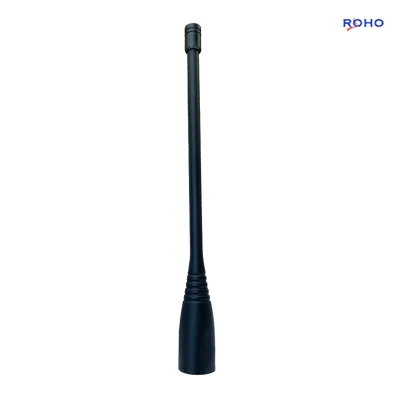

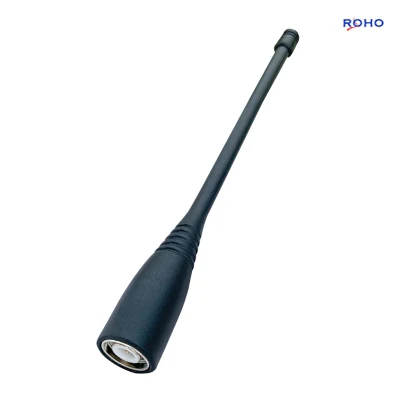

Connettore maschio TNC wireless omni direction 3dBi 433 MHz per wireless Antenna sensore

Antenna sensore wireless omni direction 3dBi 433 MHz TNC maschio. Prodotto dalla nostra fabbrica. Ottima qualità e affidabilità per segnali wireless.
Richiede una citazione

Dettagli prodotti

  • Panoramica
  • Product Parameters
  • Product Features
  • Related Products
  • Product Applications
  • FAQ
Panoramica

Informazioni di Base.

Model No.
433MHz Terminal Antenna
Antenna Base
Antenna High Gain
Natura dell′operazione
Trasmissione Antenna
Sturcture Form
Wireless Antenna
Dimensionalità
One-Dimensional Antenna
Pacchetto di Trasporto
Foam + Carton
Origine
China
Capacità di Produzione
100000/Month

Descrizione del Prodotto

433MHz 3dBi Wireless Omni Direction TNC Male Connector for Wireless Sensor Antenna

Product Parameters



ELECTRICAL DATA
Frequency Range(MHz)  315-433
VSWR  ≤1.5
Gain(dBi)   3dBi
Input Impedance(Ω)  50
Cable Type  /
Connector Type  TNC Male
Mounting   /
Housing  Black/White
Storage Temperature  -45ºC to +75ºC
Operating Temperature -45ºC to +75ºC



Product Features



  • 2G: CDMA450, GSM850/900/1800/1900MHz, CDMA800/1900MHz
  • 3G: WCDMA
  • 4G: FDD-LTE, TD-LTE,450MHz,3400-3800MHz
  • WiFi: 2.4GHz, 5.8GHz
  • Bluetooth: 2.4GHz
  • RFID/UHF/NFC: 13.56MHz, 433MHz, 750MHz, 915MHz
  • GPS/BDS/GLONASS/GALILEO: 1559MHz-1615MHz
433MHz 3dBi Wireless Omni Direction TNC Male Connector for Wireless Sensor Antenna


Related Products



    RF connectors are used to connect cables to other devices and are specifically designed to maintain the shielding on the cable. High-quality connectors offer reliable, long-lasting connections, Low Pim Connectors.

    There are two distinct connector styles; male and female. Male connectors have a protruding metal pin in the center, whereas female connectors have a receptacle to receive that pin. Depending on the connector size and frequency, some may be sexless and mounted flush instead of mating.

    Within digital, video, audio, Network,RF Coaxial system, and microwave industries, there are several varieties of coaxial cable connector types. Each offers unique benefits based on the end use or application. Below are some of the most common coaxial connector types, along with their distinguishing characteristics and intended applications,DIN 7-16, N, 4.3-10, BNC, SMA, NEX10, MCX, TNC, QMA, IPEX/U.FL etc.

433MHz 3dBi Wireless Omni Direction TNC Male Connector for Wireless Sensor Antenna
433MHz 3dBi Wireless Omni Direction TNC Male Connector for Wireless Sensor Antenna

    RF Cable Assemblies high-frequency cables are suitable for low-loss and distortion-free transmission of high-frequency signals. The fastest transmission of data takes place directly which is why assembled coaxial cables from ROHO ensure powerful and uncomplicated data communication. The shielded design makes ROHO assembled coaxial cables far less sensitive to external interferences such as damage or electromagnetic fields. Wired solutions are suitable for highly complex infrastructures where flexibility, security and performance count, such as measurement lines in test laboratories. Furthermore, they are used in electrical and radio technology, communication and data technology - all areas where high demands on transmission quality or shielding are made.

    The product range incorporates all commonly available RF cable assemblies and the development of customized solutions from DC up to 50 GHz.

    ROHO offers RF adapters design as well as T and Cross RF adapters. RF adapters include some connectors interface types such as SMA,TNC, N, BNC, SMP, 4.3-10, DIN 7-16, 2.92mm, 3.5mm, NEX10, QMA ,MCX, UHF and F.

    RF adapters are available in male, female, plug, jack, receptacle or sexless gender, in 50 Ohm, 75 Ohm, 78 Ohm or 95 Ohm impedance and in standard polarity or reverse polarity. RF adapters are available in quick disconnect (QD), push-on or standard interface as well as straight, 45 degrees right, radius right angle or right angle versions. ROHO offers RF adapters in standard and high performance with brass and stainless steel body as well as some hermetic, bulkhead or 4 hole panel configurations.

433MHz 3dBi Wireless Omni Direction TNC Male Connector for Wireless Sensor Antenna
433MHz 3dBi Wireless Omni Direction TNC Male Connector for Wireless Sensor Antenna
    An antenna is an array of conductors (elements), electrically connected to the receiver or transmitter. Antennas can be designed to transmit and receive radio waves in all horizontal directions equally (omnidirectional antennas), or preferentially in a particular direction (directional, or high-gain, or "beam" antennas). An antenna may include components not connected to the transmitter, parabolic reflectors, horns, or parasitic elements, which serve to direct the radio waves into a beam or other desired radiation pattern. Strong directivity and good efficiency when transmitting are hard to achieve with antennas with dimensions that are much smaller than a half wavelength.

    RF attenuators act as resistors and are used to reduce the level of a signal within radio frequency applications and RF circuits. They have many benefits, including protecting a circuit stage from receiving a current that's too high. RF attenuators can also improve impedance match, ensuring power transfer from source to load is optimised.

    RF attenuators come in three types:

    Fixed RF attenuators provide an unchanging value where specific attenuation levels are needed.

    Switched RF attenuators are made up of switches that allow varying levels of attenuation.

    Variable RF attenuators are used when it's necessary to continuously change the level of a signal.

433MHz 3dBi Wireless Omni Direction TNC Male Connector for Wireless Sensor Antenna
433MHz 3dBi Wireless Omni Direction TNC Male Connector for Wireless Sensor Antenna

    RF Terminators (also called RF loads or dummy loads) are applied to an open end of a transmission line, e.g. an RF port, to prevent the back-reflection of an RF signal. They are used in a large variety of test and measurement, defense and communication applications.

    RF load terminations are available in 2.4mm, 2.92mm, 7/16 DIN, BNC, C, Mini SMB, Mini SMP, N, QMA, SMA, SMB, SMC, SMP and TNC connector types. ROHO RF load terminations are constructed of an aluminum finned heatsink, beryllium copper, brass nickel plated or stainless steel. 0.25 Watts, 0.5 Watts, 1 Watts, 2 Watts, 5 Watts, 10 Watts, 25 Watts, 50 Watts and 100 Watts models RF load terminations are available.
    ROHO low power, medium power and high power RF load terminations products are offered with impedances of 50 Ohm, 75 Ohm or 93 Ohm. Frequency ratings for these RF load terminations range from DC to 50 GHz.  RF load terminations are available in female, jack, male and plug genders. RF load varieties from ROHO are RoHS and REACH compliant.

    ROHO power dividers (also known as RF power tappers or coaxial splitters) are available with 50 Ohm or 75 Ohm impedances. 50 Ohm power dividers / coaxial splitters from ROHO can be in 2 Way, 3 Way, 4 Way, 6 Way, 8 Way or 12 Way port designs. 75 Ohm power dividers / splitters come in 2 Way, 4 Way or 8 Way port designs. Many of our RF power divider / splitter products are RoHS and REACH compliant.

    ROHO's 50 Ohm power dividers can be with 2.92mm, BNC, N or SMA connector types, RF power tappers with 7/16 and Type N connectors. Our 75 Ohm power dividers are available with a BNC connector. Ratings for the ROHO RF microwave power dividers range from 1 Watt to 50 Watts depending on style, with RF tappers going to high power of up 700 watts based on model. Frequency ratings for our RF dividers range from DC to 26.5 GHz, RF signal power tappers frequency range of up to 2.7 GHz.

433MHz 3dBi Wireless Omni Direction TNC Male Connector for Wireless Sensor Antenna


Product Applications



                                  Communication  Base Station                                                                  Industrial Manufacturing

433MHz 3dBi Wireless Omni Direction TNC Male Connector for Wireless Sensor Antenna
433MHz 3dBi Wireless Omni Direction TNC Male Connector for Wireless Sensor Antenna


                                 Consumer Electronic                                                                                 Automotive

433MHz 3dBi Wireless Omni Direction TNC Male Connector for Wireless Sensor Antenna

FAQ



Q: Where Can we get the datasheets of the products?
A: Each product has the specification, Please contact with our sales if you need

Q: Can we get the samples before placing the order?
A: Yes. we can send you some free samples for your test before your order.

Q: How long is the lead time?
A: Normally we keep stock for most products, the lead time is 5~7 days as soon as the payment is released.
For customized products, it takes longer.


Q: How about the after-sale service?
A:If you meet any problems after sales, Pls contact us freely,we'll help solving the problems within 24 hours.

Q:  What's the payment terms?
A: Normally we accept TT and Paypal. L/C is also accepted if the order quantity is large.

Q: How about your quality control?
A: All the products will be 100% checked before the shipment.

Q: Does your company accept small order?
A: Yes, we accept small trial order.

Q: Do you support customization?
A: We support the OEM&ODM service.
